Overview

● Product Standards: DIN24255, ISO2858, GB/T5656 "Centrifugal Pump Technical Conditions"

● Type JWE pump is horizontal single-stage end suction centrifugal pump, to transfer clean water or liquids with physical and chemical properties similar to clean water, without solid particles.

uFactories

uMining

uUrban water supply and drainage

uHVAC

uIndustrial softened water

uFarmland irrigation and drainage

uPressure stabilization

Structure Features

● Simple structure & small volume, light weight

u Reliable performance

u Closed impeller High efficiency

u Good anti-cavitation performance

u Low power consumption

u Long service life

u Opening on rear side, easy maintenance.

● medium at temperature: -10~85°C

Working pressure: 1.0MPa, 1.6MPa or higher is available

Casing max. pressure: 2.5MPa

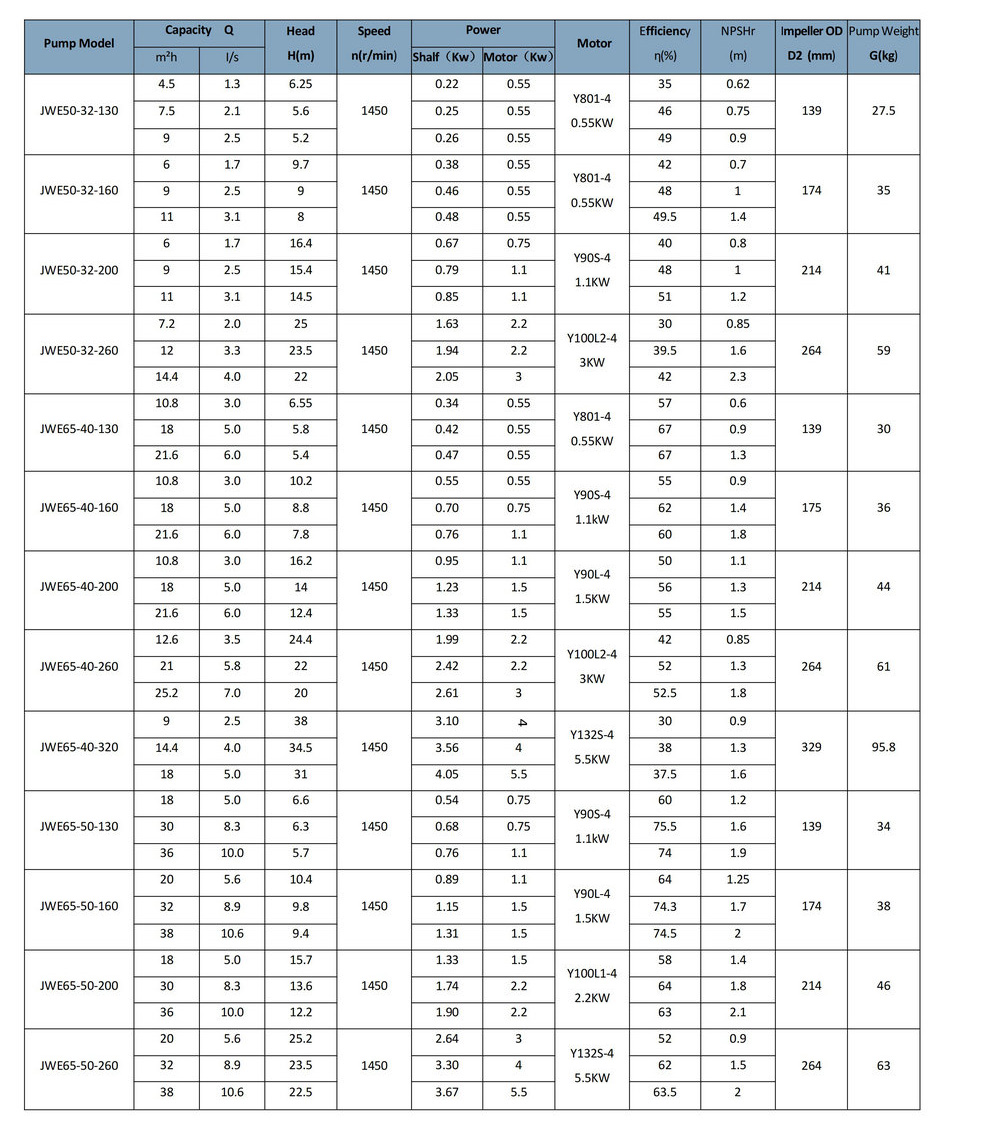

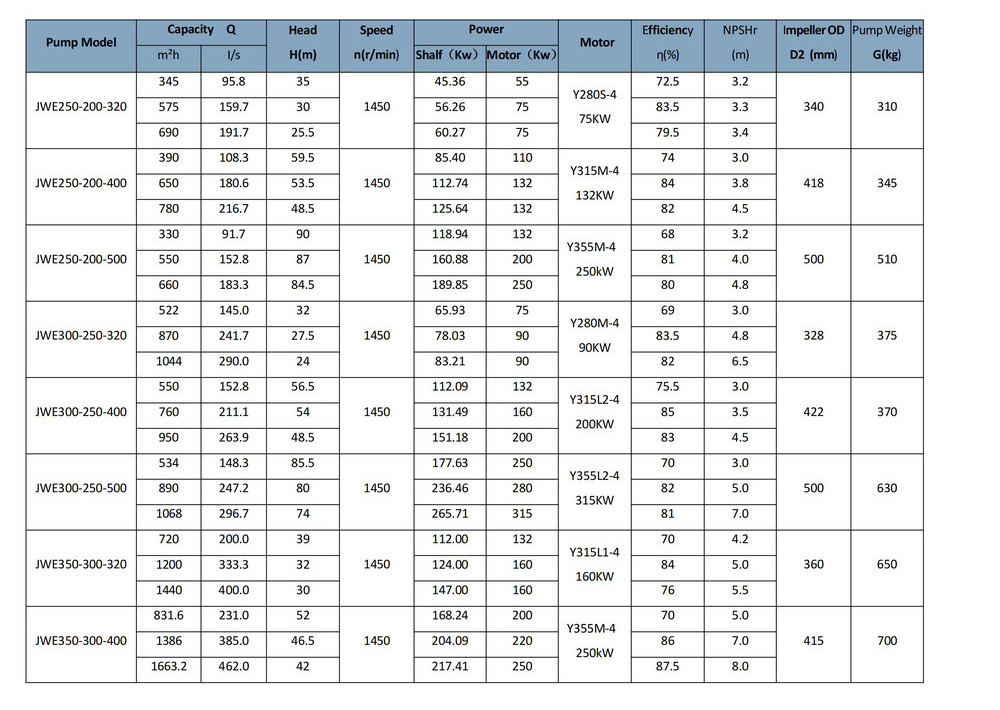

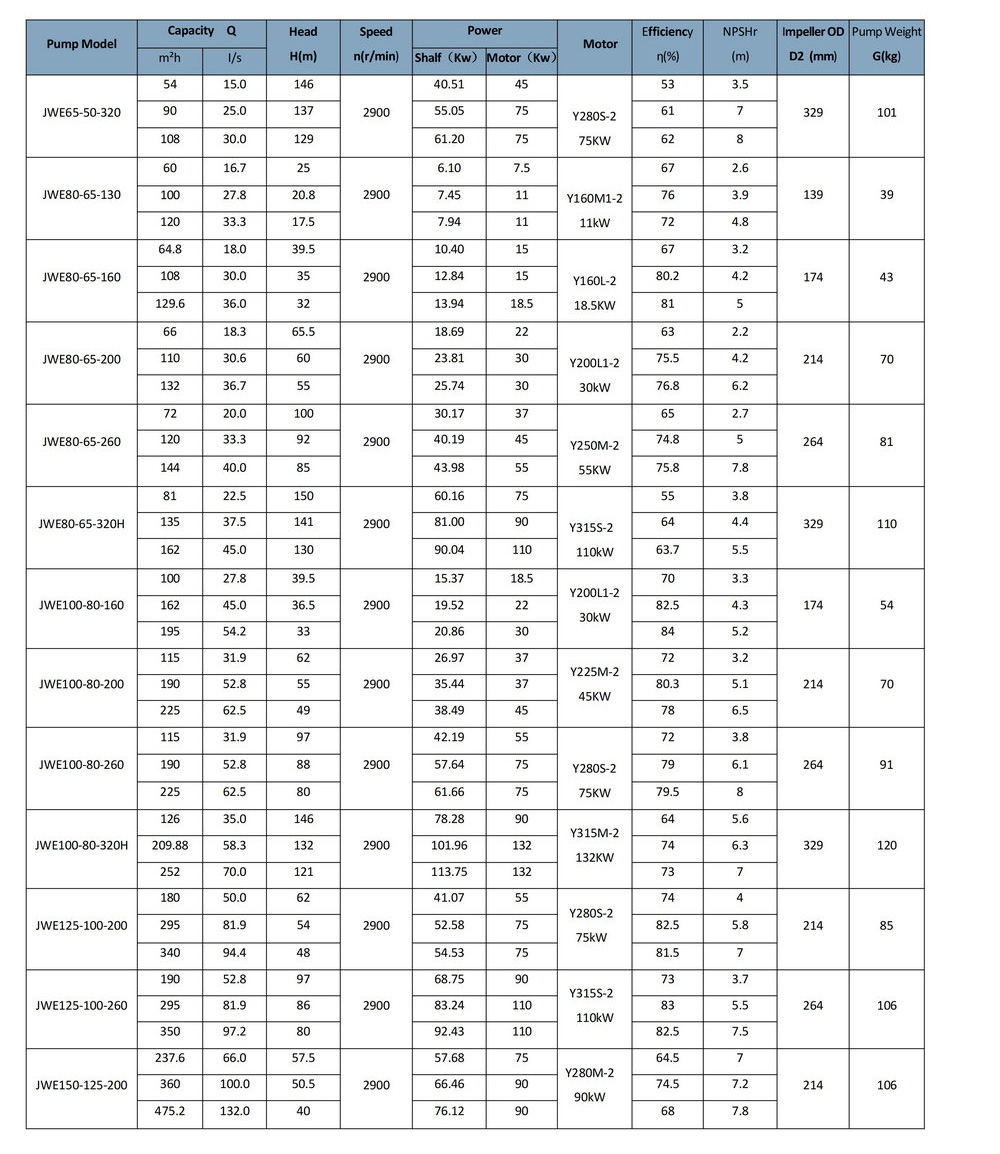

 Performance Range (Design Points)

·   Flow:5 ~1650 m³/h

·  Head: 5~135m
